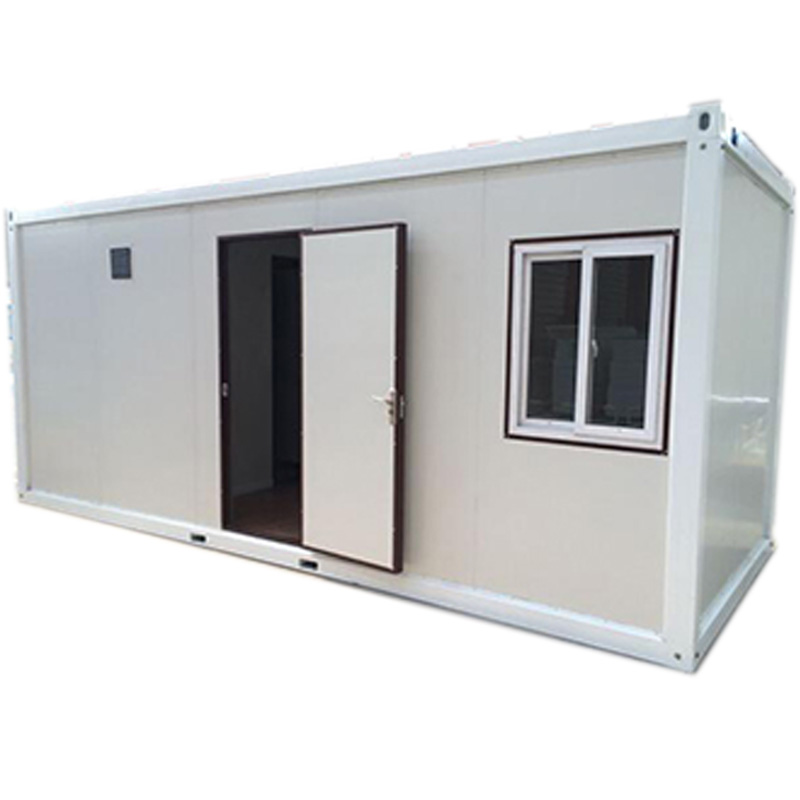

Flat Pack Container House

Flat Pack Container House

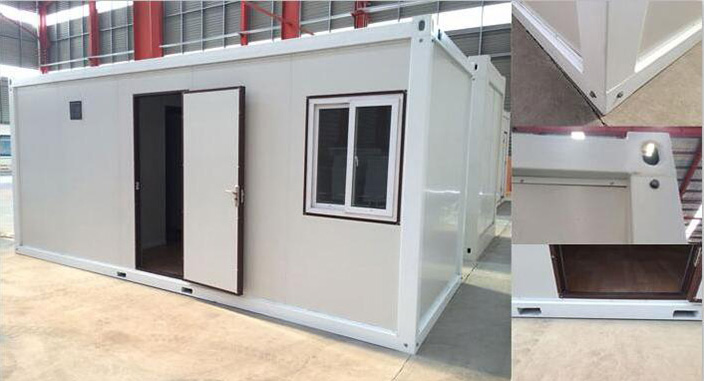

Flat pack container house was added to our production and sales offerings since its establishment in 2006. Constructed from cold rolled steel frames and insulated sandwich panels, these units are strong as well as aesthetically pleasing. The ability to flatpack the units allows for significant transport savings as they can be transported to site in kit form where up to four units are loaded in the same space as one 20ft standard shipping container. All the wall panels are interchangeable. The units are then erected on site by ourselves or others. These units are very easily joined and stackable up to 3 storeys, allowing for larger units as well as space savings, while still being easily dismantled for redeployments elsewhere as either the original unit or smaller individual units. Our Flatpacks are used, not exclusively, for the following:

Offices(Single unit or complexes)

Accommodation units/Houses

School/Classrooms

Ablution units/Toilets

Recreational facilities

Guard huts

Camps

Boardrooms

Hospitals/Clinics

Restaurants/Mess halls（Canteen）/ Kitchens

Would you like an Instant Quote on one of our

Flat Pack Container Houses

if you would like a quote on one of our new shipping containers, then send us an email on:wtochina2001@163.com,we will send you our complete price guide. Alternatively, you can contact us at Wechat/Whatsapp:+86-137 7521 6806 and we will answer any questions that you may have about our high quality products.

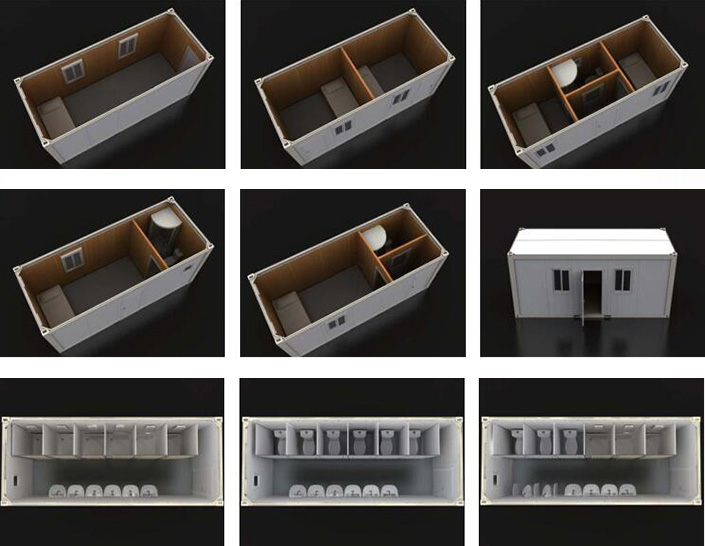

Various Layout:

Dimensions and Tare Weight

Standard 20ft size L*W*H: 6055*2435*2591mm.

We can customize from 5ft to 40ft or even larger sizes. Normally width less than 2500mm, Height less than 2700mm.

Tare weight: 1.2-1.8tons/ pcs.

Details for the parts:

Q235A cold rolled steel are used for frameworks, crossbeams, corner fittings, etc.

Roof and wall insulation: EPS, Rockwool, Glasswool, PU, etc, thickness normally like 50mm,60mm,75mm,100mm.

Door: sandwich panel door, steel door, anti-burglar door.

Window: plastic steel window, aluminum alloy window

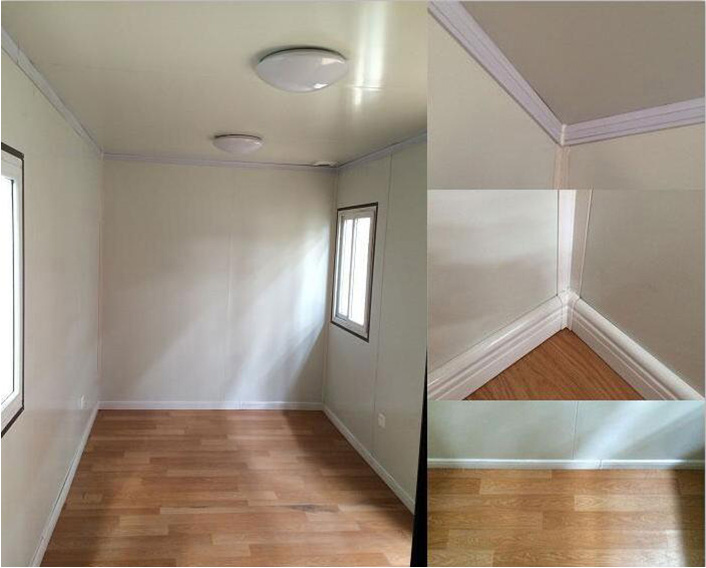

PVC floor, composite wood floor, Tile

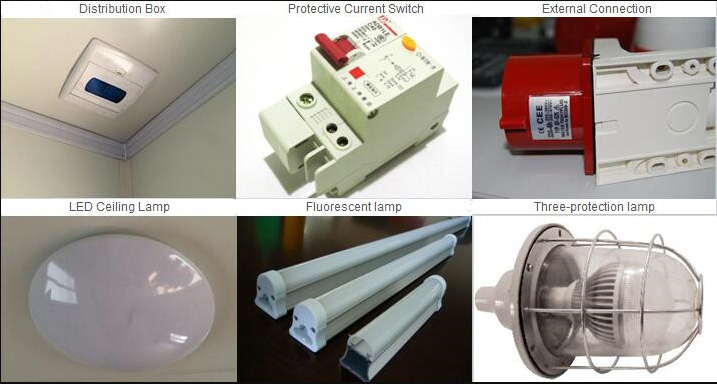

Electricals

Yinhe supply quality and various electrical standard which can match markets needs from China, Europe, America, Oceania, etc.

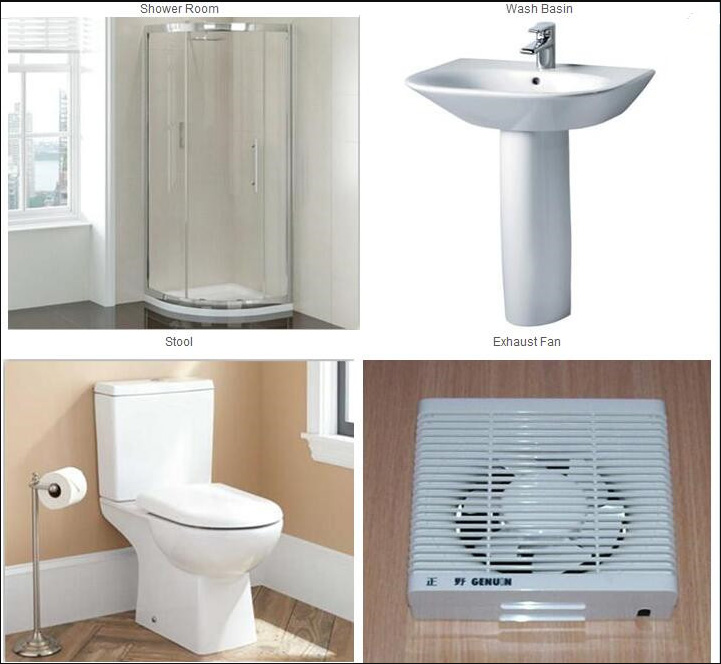

Washroom and pipe:

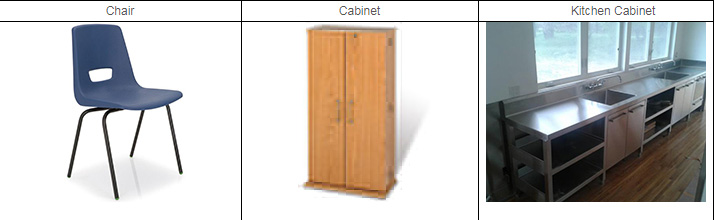

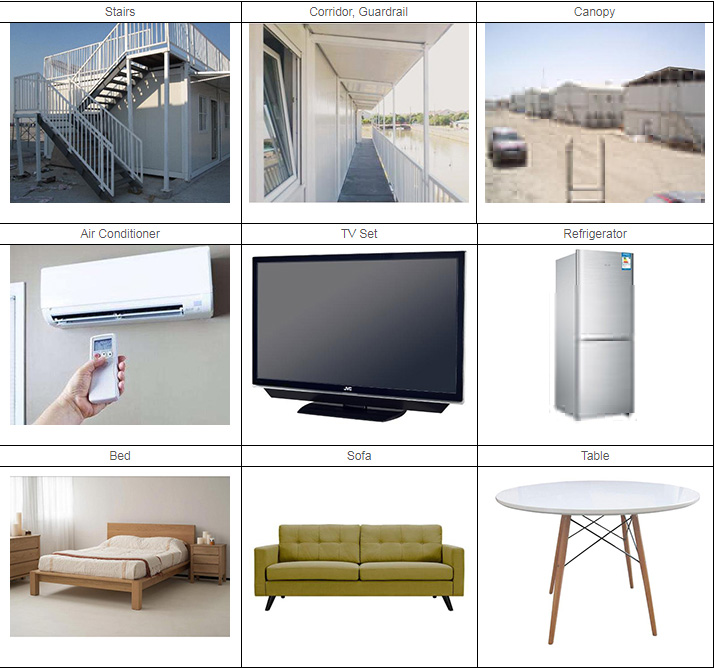

Other Optional Parts:

Installation:

4 skilled workers can finish the installation of a 20ft flatpack container within 4 hours.

We offer following installation instructions for your reference.

1, Word and picture illustration explanation.

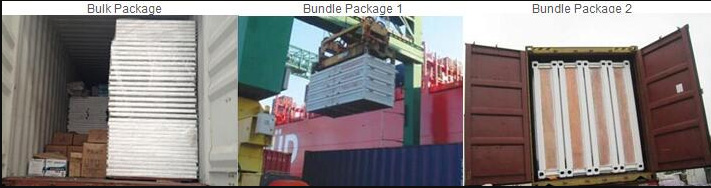

Package:

Quality Guarantee:

All components have one year warranty. Accept SGS and BV checking.

Anti 8 grade earthquake，Wind load:0.5KN/m² ,Roof live load:0.5KN/m² , Floor live load:1.5 KN/m² .

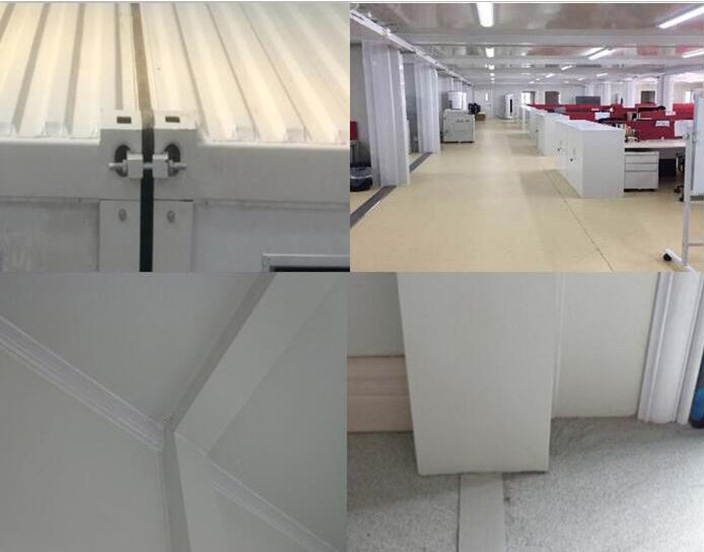

Water-proof: Single unit and Complex .

Single unit: roof are full welded corrugated steel panel, water will flow with the channel to the ground.

Complex: A  sealing strip will be put between two flatpack containers, and corner fittings will be connected by bolts.

Inside be protected by color-coated sheet and universal gusset plate.
